An indoor LED screen is a fixed flat-panel display built from a regular grid of light-emitting diodes acting as individual pixels. The format replaces static printed signage, projection screens, and back-lit posters with a single surface that can show video, real-time data, scheduled content loops, and live broadcast — all swappable from a single content player.

The catch with most indoor displays is the trade-off between resolution and viewing distance. Push the pixel pitch finer and the image holds up at arm's length, but the cabinet weight, the power draw, and the unit price climb with it. The ARECH indoor LED screen series solves the trade-off through module commonality: all five pitches from P1.9 to P4.8 sit on the same 250 × 250 mm module footprint, so a venue can spec the resolution it actually needs without re-engineering the cabinet build.

Experience Brilliance, Backed by Strength.

Image quality at close range

Pixel density tight enough to read clean text from arm's length, a wide colour gamut tuned for natural skin tones and brand reds, and a per-cabinet calibration profile that holds the seam between two panels invisible under content. The 800–1,200 nits standard variant suits controlled-light interiors; the 3,000–3,500 nits high-bright option keeps the image legible behind plate glass and under sunlit atrium roofs.

Module compatibility across pitches

Every pixel pitch in the series (P1.9 / P2.6 / P2.9 / P3.9 / P4.8) uses the identical 250 × 250 mm module. A wall built today at P2.6 can be re-pitched to P1.9 in five years without ripping out the cabinets. Same mechanical envelope, same mounting hardware, same service tooling.

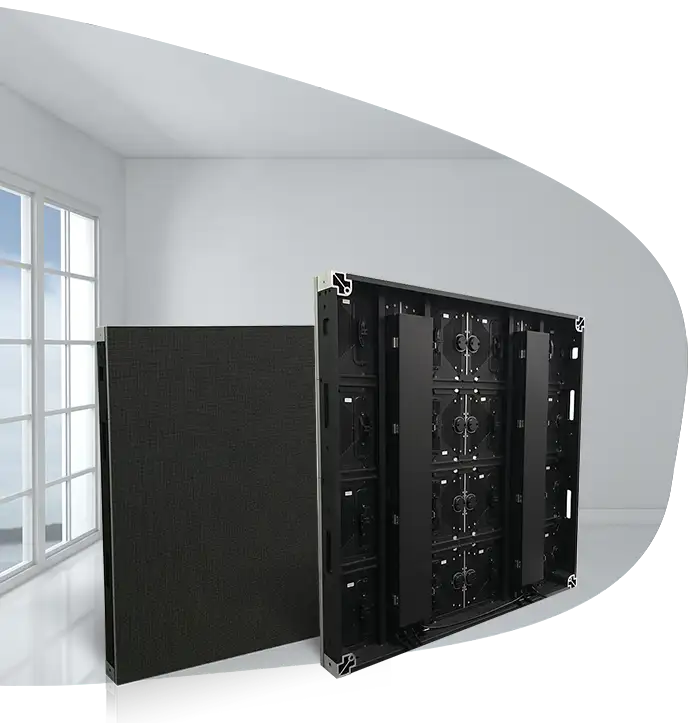

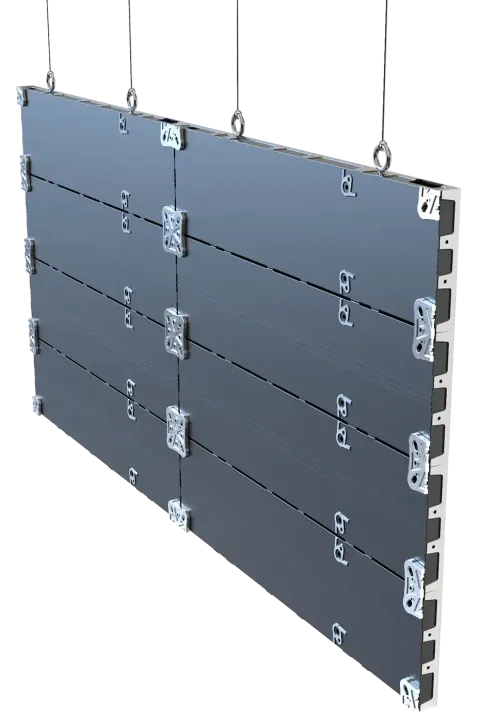

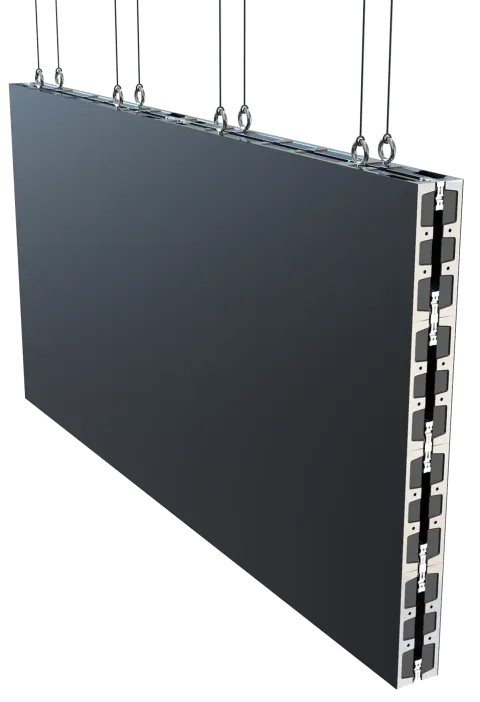

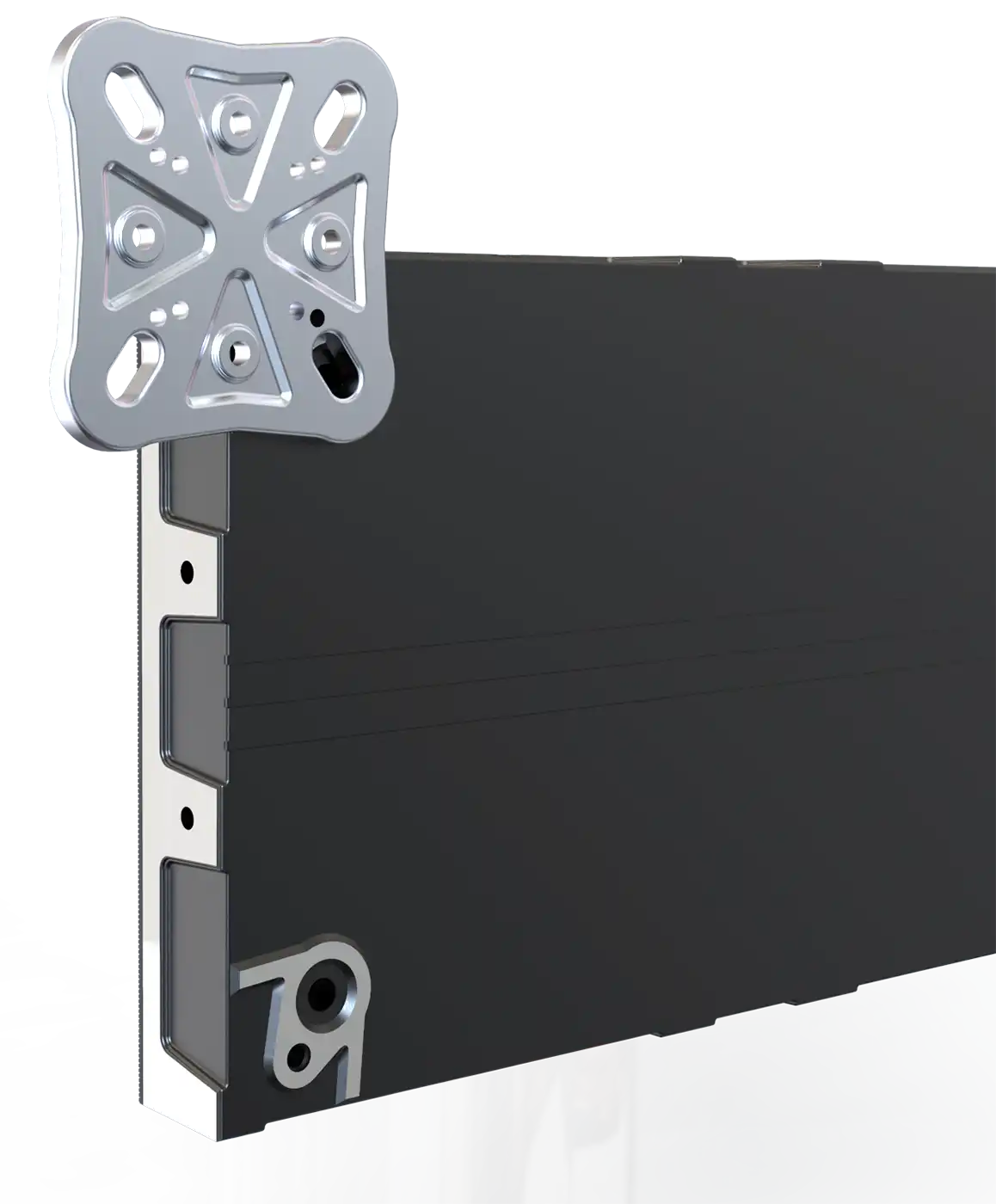

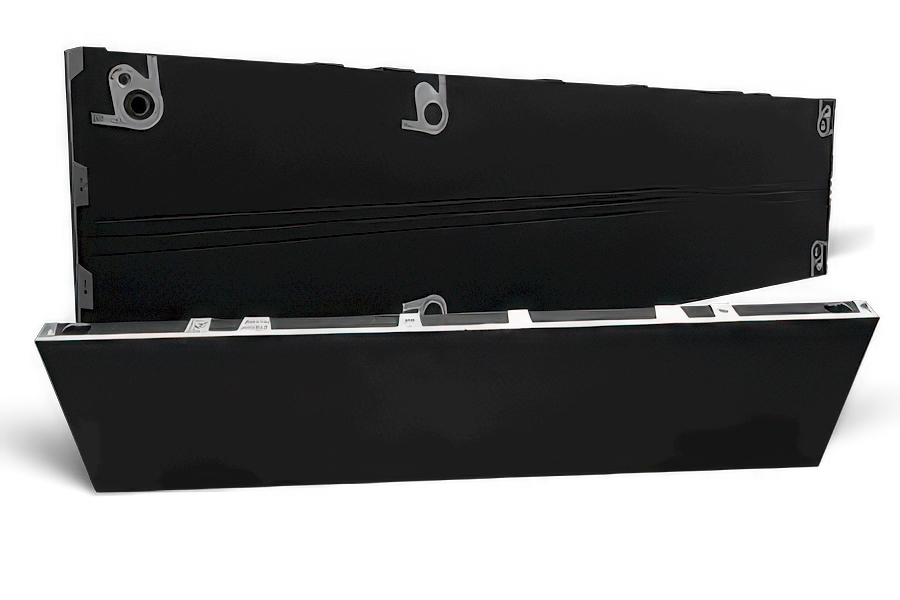

Slim cabinets, low weight, easy install

Aluminium-profile cabinets at 40 mm depth keep the panel close to the host wall. A 1000 × 250 mm cabinet weighs 5.5 kg — light enough for two installers to mount a multi-cabinet wall without lifting equipment.

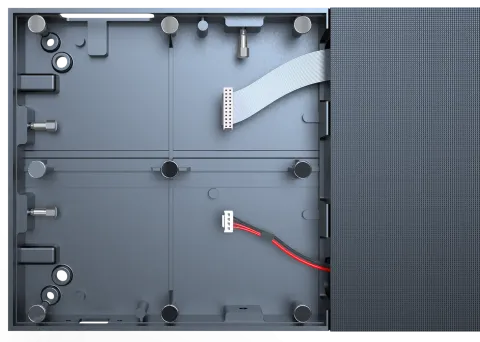

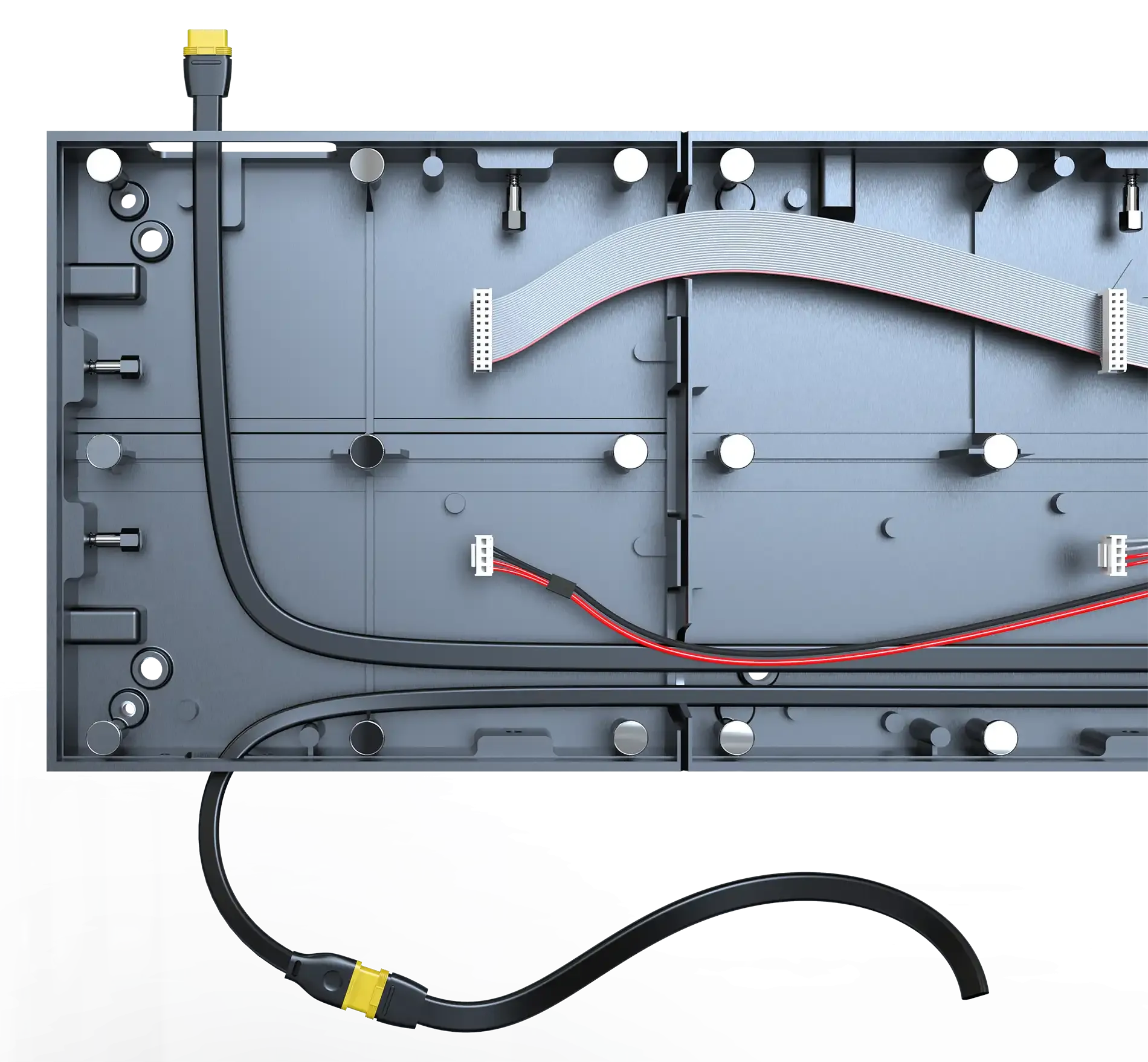

Full front maintenance

LED modules, power supplies, and receiving cards all lift out from the front using a magnetic tool. The architecture is built for the installation reality of indoor venues — walls in retail flagships and corporate lobbies are usually built flush with no rear access.

SPECIFICATIONS

Indoor LED Screen Specification

The complete specification ladder for the indoor series. Confirm the row that fits the venue, then request the full PDF spec sheet for that variant.

Fixed Indoor LED Display Screens series

Parameter	ACIDP01.9FC	ACIDP02.6FC	ACIDP02.9FC	ACIDP03.9FC
Pixel Pitch	1.9mm	2.6mm	2.9mm	3.91mm
LED Type	SMD1515	SMD2121	SMD2121	SMD2121
Module Dimension WxH	250x250mm	250x250mm	250x250mm	250x250mm
Cabinet Dimension WxH	1000/750x250mm & 500x500mm Optional	1000/750x250mm & 500x500mm Optional	1000/750x250mm & 500x500mm Optional	1000/750x250mm & 500x500mm Optional
Cabinet Material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight	5.5kg/1000x250mm	5.5kg/1000x250mm	5.5kg/1000x250mm	5.5kg/1000x250mm
Service Type	Front	Front	Front	Front
Brightness	800-1000nits	1000-1200nits	1000-1200nits	1000-1200nits
Processing	16 bit	16 bit	16 bit	16 bit
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Drive Mode	Dynamic	Dynamic	Dynamic	Dynamic
Hor. Viewing Angle	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)
Vert. Viewing Angle	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)
Power Consumption	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)
Refresh Rate	Adjustable	Adjustable	Adjustable	Adjustable
IP Rating	IP30	IP30	IP30	IP30
Operating Power Voltage	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz
Operating Temperature	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C
Operating Humidity	10% to 90%	10% to 90%	10% to 90%	10% to 90%
Standard	CE / FCC	CE / FCC	CE / FCC	CE / FCC
Warranty	2 years	2 years	2 years	2 years

Fixed Indoor High brightness series

Parameter	ACIDP04.8FC	ACIDP02.9HL	ACIDP03.9HL	ACIDP04.8HL
Pixel Pitch	4.81mm	2.9mm	3.91mm	4.81mm
LED Type	SMD2121	SMD1415	SMD1921	SMD1921
Module Dimension WxH	250x250mm	250x250mm	250x250mm	250x250mm
Cabinet Dimension WxH	1000/750x250mm & 500x500mm Optional	1000/750x250mm & 500x500mm Optional	1000/750x250mm & 500x500mm Optional	1000/750x250mm & 500x500mm Optional
Cabinet Material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet Weight	5.5kg/1000x250mm	5.5kg/1000x250mm	5.5kg/1000x250mm	5.5kg/1000x250mm
Service Type	Front	Front	Front	Front
Brightness	1000-1200nits	3000-3500nits	3000-3500nits	3000-3500nits
Processing	16 bit	16 bit	16 bit	16 bit
Colors	281 trillion	281 trillion	281 trillion	281 trillion
Drive Mode	Dynamic	Dynamic	Dynamic	Dynamic
Hor. Viewing Angle	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)
Vert. Viewing Angle	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)
Power Consumption	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)
Refresh Rate	Adjustable	Adjustable	Adjustable	Adjustable
IP Rating	IP30	IP30	IP30	IP30
Operating Power Voltage	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz
Operating Temperature	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C
Operating Humidity	10% to 90%	10% to 90%	10% to 90%	10% to 90%
Standard	CE / FCC	CE / FCC	CE / FCC	CE / FCC
Warranty	2 years	2 years	2 years	2 years

Brightness, lifespan, service

Standard brightness: 800–1,200 nits — calibrated for controlled-light interiors.
High-brightness option: 3,000–3,500 nits — for storefronts, atriums, and any interior with significant daylight ingress.
Operating life: 100,000+ hours with brightness held above 50% of day-one rating.
Service architecture: 100% front service. Magnetic tool lifts LED modules, power supplies, and receiving cards from the front face.

APPLICATIONS

Where an Indoor LED Screen Earns Its Place

From high-traffic retail environments and corporate lobbies to immersive event spaces and command centers. This gallery showcases real-world installations where visual impact, reliability, and seamless integration define the space.
Not just installed, but integrated. Discover the projects where our LED screens deliver clarity, engagement, and lasting value exactly where they're needed most.

Pixels with Purpose.

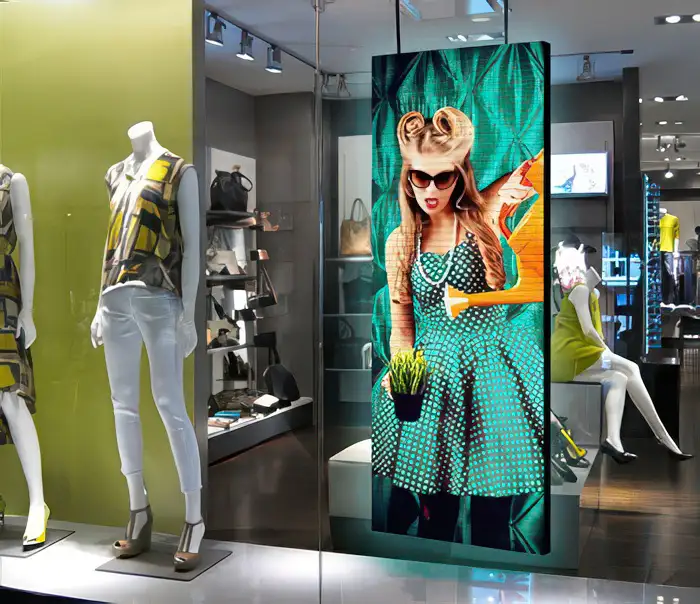

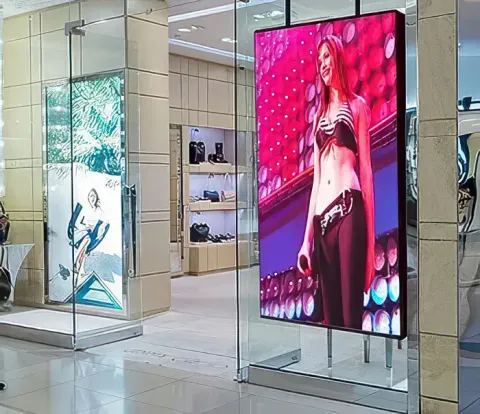

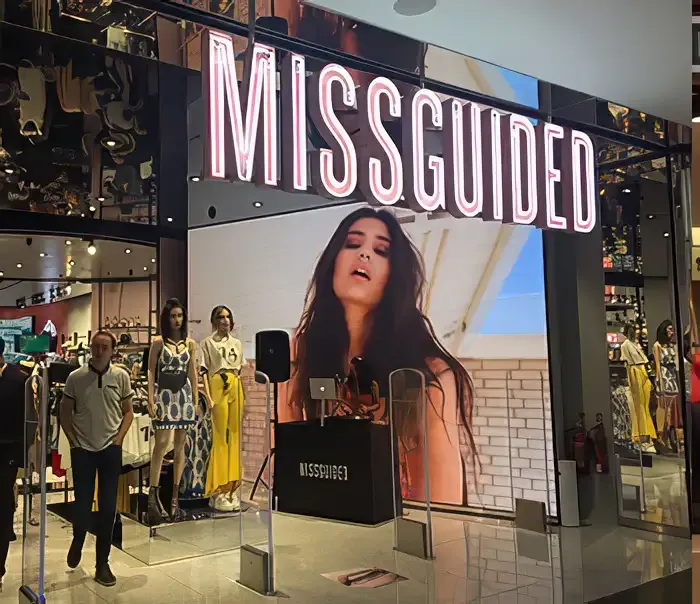

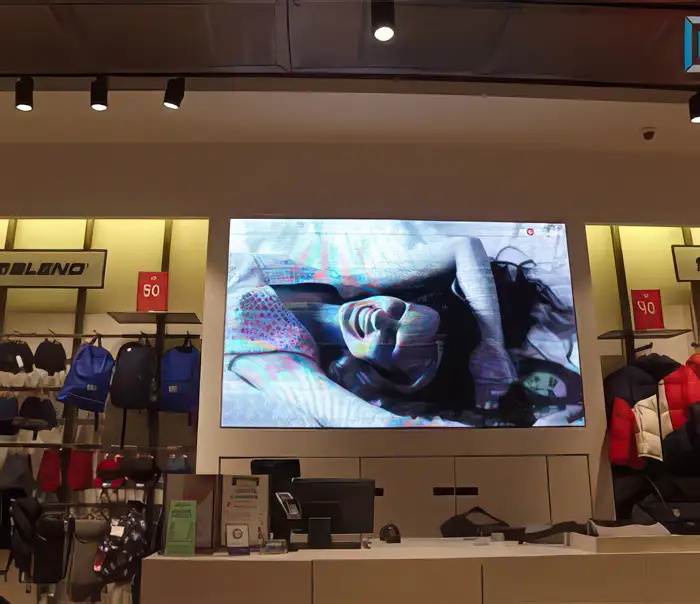

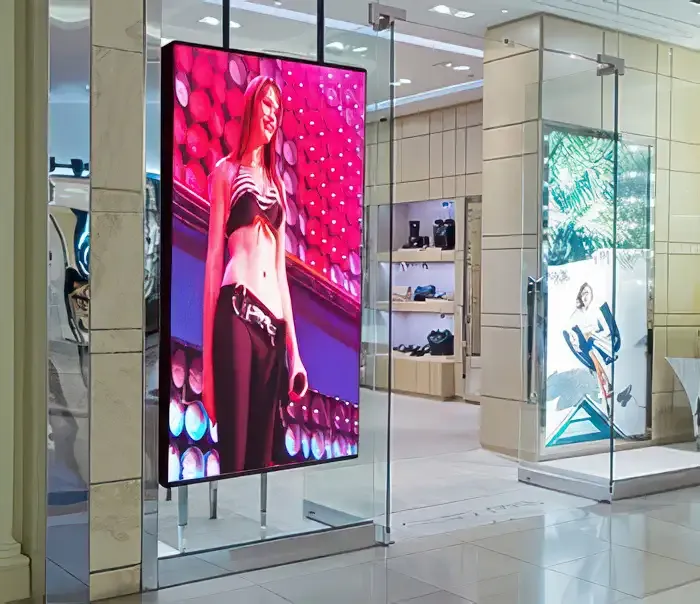

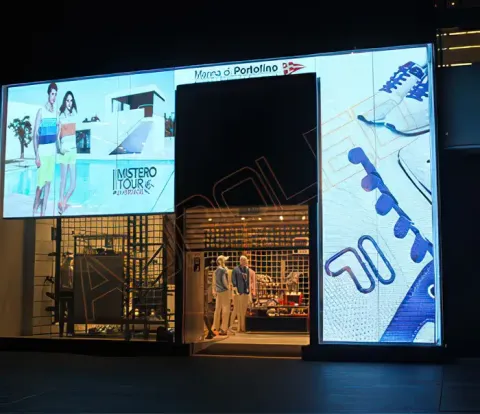

Retail flagships and shopping centres

Window-front walls running seasonal campaigns, in-store product spotlights, mood walls behind point-of-sale, and immersive brand backdrops. Content is loop-driven and changes per campaign — no print runs, no static lifecycle. The high-brightness option covers window installations where direct daylight reaches the panel.

Corporate lobbies and broadcast studios

Reception walls running company brand reels, news ribbons, or live event feeds. Conference and boardroom installations for video conferencing and presentation. Broadcast studio backdrops with flicker-free refresh and accurate skin-tone calibration.

Hospitality and entertainment venues

Hotel lobby focal walls, restaurant menu boards that change by service, bar and nightclub atmospheric video, casino floor signage, cinema concession boards. One product family covers the full hospitality footprint.

Transport hubs

Airport concourse and gate-area video walls, train-station wayfinding screens, subway platform information displays, bus terminal arrivals boards. Long-life operation matters here because the screens run twenty hours a day, every day.

Public spaces and institutions

Museum exhibit walls, school lobby displays, bank branch information ribbons, hospital wayfinding and waiting-room screens. A reliable, low-maintenance display that earns its install cost back across years of duty.

Control rooms and 24/7 monitoring

Mission-critical operation, fine-pitch detail for dense data layouts, flicker-free refresh for broadcast cameras, colour calibration that matches across all cabinets in the wall. A P1.9 indoor LED screen reads cleanly at the desk-to-wall distance of most operations centres.

01

Measure the viewing distance.

The closest viewer drives the pitch decision. Closer than 2 m → P1.9. 2 to 3 m → P2.6. 3 to 4 m → P2.9. 4 to 5 m → P3.9. Past 5 m → P4.8. Pitch can be re-spec'd later without changing cabinets thanks to module commonality.
02

Pick the cabinet ladder.

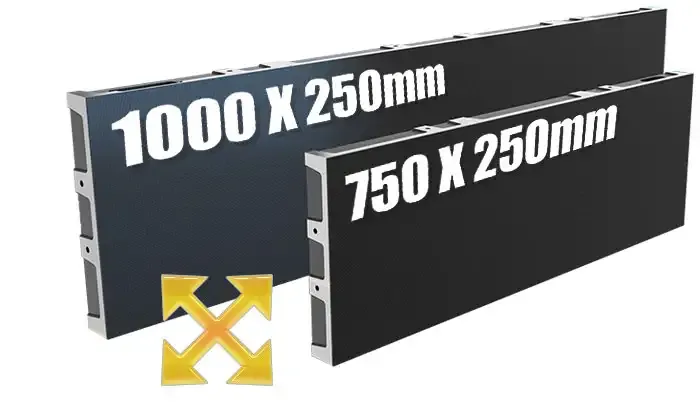

Tall narrow display → 1000 × 250 mm. Compact retail strip → 500 × 500 mm. Wide medium wall → 500 × 1000 mm. Large-area surface → 1000 × 750 mm. All cabinets stack to any multiple of 250 mm.
03

Read the ambient light.

Indoor controlled lighting → standard 800–1,200 nits. Window-front or sunlit atrium → high-brightness 3,000–3,500 nits option.
04

Confirm the install plan.

Flush against a wall with no rear access → mandatory front-maintenance build (default across the series). Suspended ceiling, freestanding floor frame, or stacked formation — all supported. Detailed installation manuals ship with every order.

When the four answers are in hand, send the brief to our engineering team. Reply window is typically the next business day with a specific model recommendation, a price, and a delivery date.

Why Customers Move From Print to an Indoor LED Screen

A practical comparison between traditional indoor signage and a fine-pitch LED wall.

Brand presence. A high-resolution video wall puts a room in the current decade; the same room with printed posters reads ten years behind. Retail conversion studies consistently put dynamic signage ahead of static for dwell time and recall.
Content control. Update the message from a central content player instantly. Seasonal campaigns, day-part menus, live event reels, product reveals — all swap without a print queue, a delivery wait, or an installer call-out.
Cost over the install lifetime. Static signage requires reprints, replacement, and installation labour every campaign cycle. An indoor LED screen amortises that cost across a 100,000+ hour service life and replaces every replacement event with a content upload.
Audience signal. Motion grabs the eye before stills do — that is how human peripheral vision is wired. For retail, the payoff is dwell time at the window; for broadcast, a backdrop that reads as a current-decade production instead of a 2010s set.

01

Outdoor LED Screen

Rain, dust, direct sunlight, billboards, building facades.

Explore outdoor

02

Flexible LED Screen

Curved or sculptural geometry — column wraps, dome ceilings, free-form architectural pieces.

Explore flexible

03

HD Wall LED Display

Sub-2 mm pitch close-viewing — control rooms with extreme density, broadcast walls at arm's reach.

Explore HD wall

04

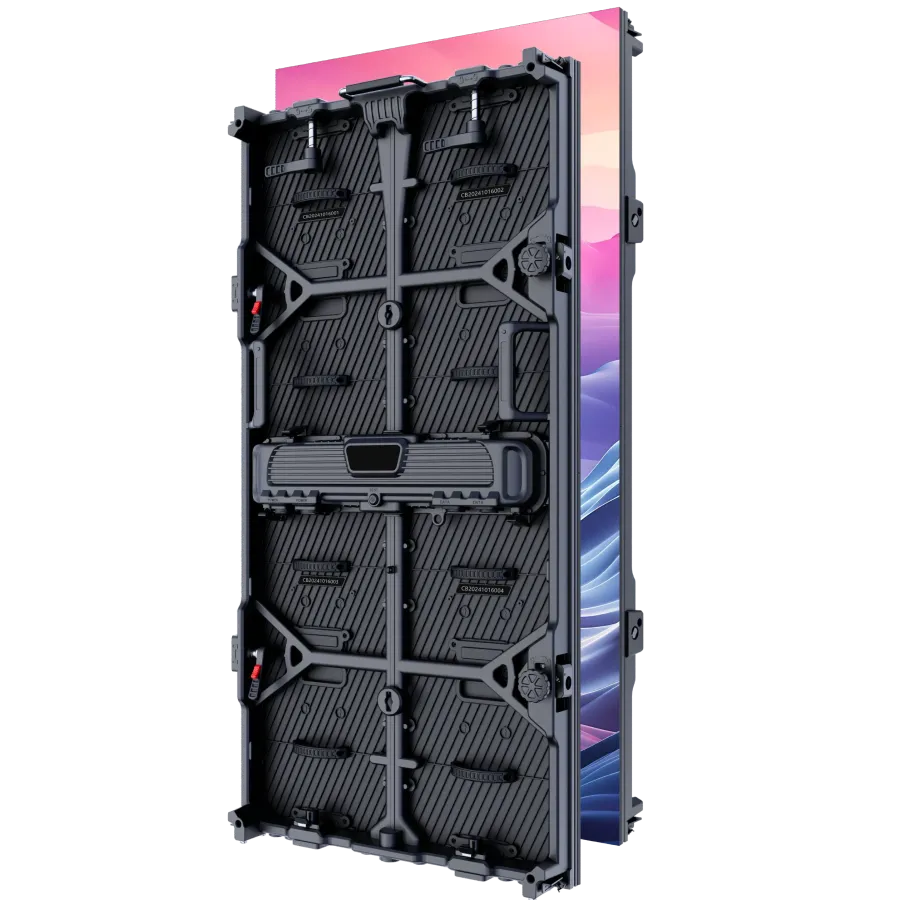

Rental LED Display

Touring, events, fast rig-and-strike — concerts, conferences, exhibitions, weddings.

Explore rental

What pixel pitch options are available for the ARECH indoor LED screen series?

Five pitches: P1.9, P2.6, P2.9, P3.9, and P4.8. All five share the same 250 × 250 mm module footprint, which means a cabinet can be re-pitched in the future without changing the cabinet hardware.

What does "front maintenance" mean and why is it important?

Front maintenance means every serviceable part — LED modules, power supplies, receiving cards — can be removed and replaced from the front of the screen using a magnetic tool. It matters when the screen sits flush against a wall, recessed into joinery, or in a tight room with no rear access.

What standard cabinet sizes are available for ARECH indoor LED screens?

Four standard cabinets: 500 × 500 mm, 500 × 1000 mm, 1000 × 250 mm, and 1000 × 750 mm. Because every module is 250 × 250 mm, screen dimensions can be built in any multiple of 250 mm to fit the host wall exactly.

Can the indoor LED screen run in a bright environment like a storefront window?

Yes. A high-brightness option pushes panel output to 3,000–3,500 nits, which holds image readability against direct daylight through plate glass, in sunlit atriums, and in window-front retail displays.

How heavy are the cabinets and how are they mounted?

A 1000 × 250 mm cabinet weighs 5.5 kg at 40 mm depth. Aluminium-profile construction across the series keeps weight low. Mounting options include flush wall, suspended ceiling, freestanding floor frame, and stacked configurations.

What is the typical lifespan of an ARECH indoor LED screen?

Engineered for 100,000+ hours of operation with brightness held above 50% of the day-one rating. That works out to 11 years of 24/7 operation, or 27 years at a 10-hour daily duty cycle. Lifespan depends on duty cycle, ambient temperature, and brightness setting. Full warranty terms on the warranty page.

SPECIFY

Specify Your Indoor LED Screen Indoor LED Screen

Send the venue dimensions, the closest viewer distance, the ambient light read, and the install context (flush wall / suspended / freestanding). We answer with a specific model row out of the indoor series, a price, and a delivery window — typically inside one business day.
